ADA Braille Signs: Technical Specifications and Implementation Guide
ADA braille signage requirements represent a critical component of accessibility compliance for commercial buildings and businesses across the United States. Understanding the technical specifications and implementation standards for braille signs ADA compliance ensures that your facility meets federal accessibility guidelines while providing essential navigation assistance for individuals with visual impairments. This comprehensive guide examines the precise requirements for Grade 2 Braille implementation, tactile character specifications, placement guidelines, manufacturing standards, verification processes, and cost considerations that facility managers and business owners must understand to achieve full ADA braille signage requirements compliance.
The Americans with Disabilities Act (ADA) mandates specific technical requirements for braille signs that go far beyond simple text translation. These requirements encompass material specifications, dimensional tolerances, spacing measurements, and quality control standards that directly impact the functionality and legal compliance of your signage system. According to the 2010 ADA Standards for Accessible Design, braille signs must meet precise technical criteria to ensure consistent tactile readability across all installations, making expert knowledge of these specifications essential for successful implementation.
Grade 2 Braille Requirements for Commercial Signs
Grade 2 Braille serves as the standard contracted braille system required for all ADA braille signage requirements in commercial applications. This system differs significantly from Grade 1 Braille by utilizing contractions and abbreviations that reduce the overall length of braille text by approximately 25-30%, making it more efficient for tactile reading. The ADA specifically mandates Grade 2 Braille because it represents the most commonly taught and used braille system among individuals with visual impairments, ensuring maximum accessibility and usability across diverse user populations.
Commercial braille signs ADA compliance requires that all Grade 2 Braille contractions follow the rules established by the Braille Authority of North America (BANA), which maintains the official English Braille American Edition standards. For example, common contractions include "th" represented by a single cell, "ing" as a suffix contraction, and "and" as the single symbol "&". These contractions must be applied consistently across all signage within a facility to maintain uniformity and prevent confusion for braille readers. Manufacturing specifications require that Grade 2 Braille cells maintain precise dot formation with each dot measuring 0.059 inches (1.5mm) in diameter and protruding 0.025 inches (0.6mm) from the sign surface, ensuring optimal tactile recognition for users with varying sensitivity levels.

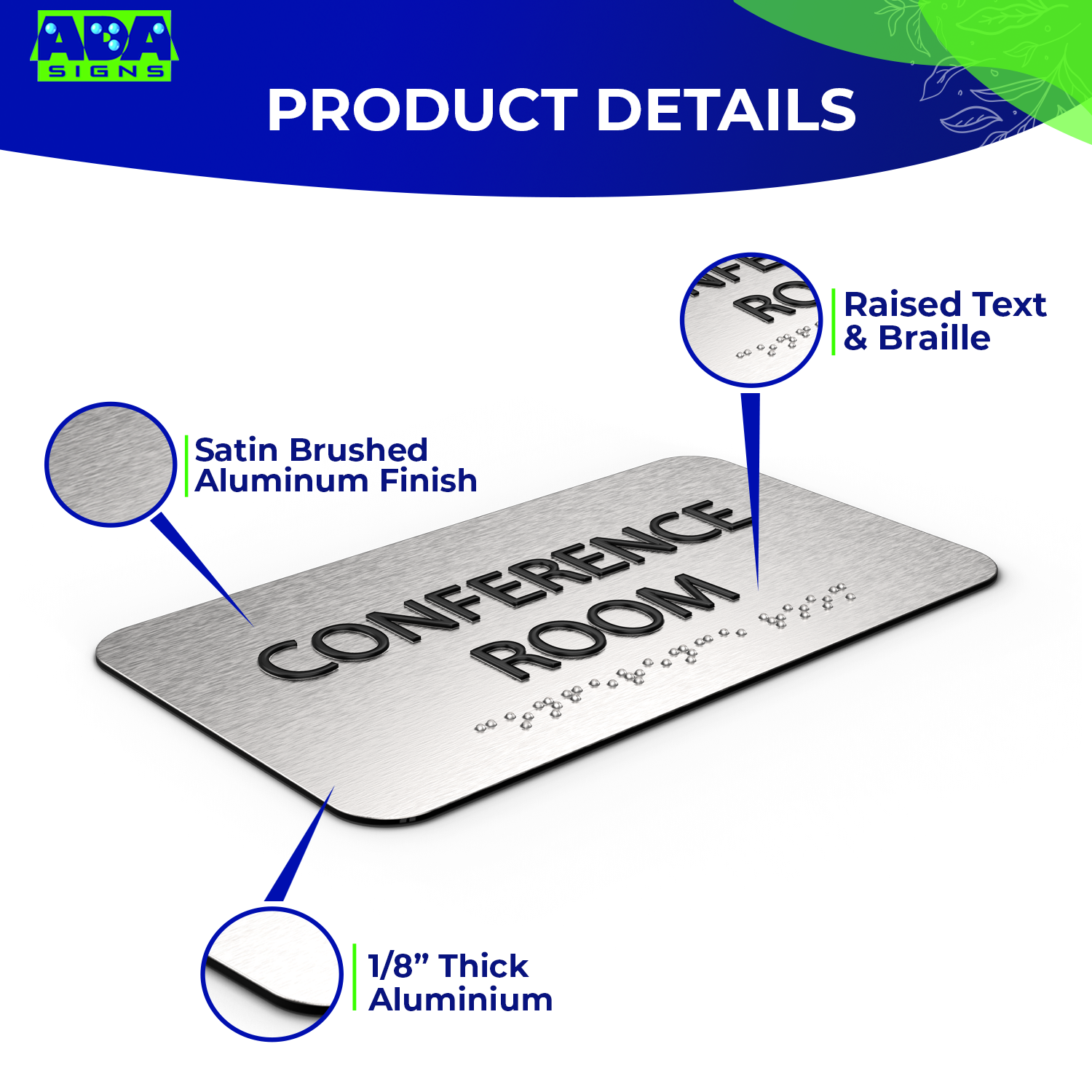

Tactile Character Standards and Specifications
Tactile character standards for ADA braille signage requirements encompass both raised character text and braille specifications that must work in harmony to provide comprehensive accessibility. Raised characters must measure between 5/8 inch (16mm) and 2 inches (51mm) in height, with a stroke width between 1/8 inch (3.2mm) and 3/16 inch (4.8mm) to ensure optimal finger-reading capability. The depth of raised characters must maintain a minimum of 1/32 inch (0.8mm) with beveled or rounded edges to prevent finger injury during tactile reading. These dimensional requirements result from extensive research conducted by the Access Board, which determined that these measurements provide the optimal balance between readability and durability for commercial applications.
Braille dots within tactile signage must adhere to specific geometric requirements that contribute to consistent readability across different manufacturing processes and materials. Each braille dot requires a base diameter of 0.059 inches (1.5mm) tapering to 0.047 inches (1.2mm) at the top, creating a truncated cone shape that provides optimal tactile feedback. The spacing between dot centers within a braille cell measures exactly 0.090 inches (2.3mm) horizontally and 0.100 inches (2.5mm) vertically, while the spacing between braille cells maintains 0.241 inches (6.1mm) center-to-center horizontally. These precise measurements ensure that braille signs ADA compliance maintains consistency regardless of the manufacturing method used, whether injection molding, thermoforming, or CNC machining processes are employed.
Braille Placement and Spacing Guidelines
Proper placement and spacing of braille elements on ADA compliant signage directly impacts usability and legal compliance, requiring adherence to specific dimensional relationships between visual text, raised characters, and braille components. Braille must be positioned directly below the corresponding raised character text with a separation distance of 3/8 inch (9.5mm) measured from the bottom of the raised characters to the top of the braille cells. This spacing requirement ensures that users can easily transition from reading raised characters to braille without losing their position or requiring extensive hand repositioning during the reading process.
The horizontal alignment of braille text must maintain left-justification with the corresponding raised character text above it, ensuring consistent spatial relationships that facilitate efficient tactile navigation. When multiple lines of text appear on a sign, each line of braille must align with its corresponding visual text line, maintaining the 3/8 inch vertical separation consistently across the entire sign surface. ADA braille signage requirements also specify that braille should not extend beyond the boundaries of the sign face, requiring careful planning during the design phase to ensure adequate space allocation. For signs with limited surface area, text editing may be necessary to accommodate both raised characters and braille within the available space while maintaining all required spacing measurements and ensuring full accessibility compliance.
Manufacturing Quality Standards for Braille Signs
Manufacturing quality standards for braille signs ADA compliance encompass material selection, production processes, and dimensional tolerance requirements that ensure long-term durability and consistent tactile performance. Acceptable materials for ADA braille signage include high-impact acrylic, photopolymer resins, cast acrylic, and engineered plastics that maintain dimensional stability across temperature variations ranging from -40°F to 140°F (-40°C to 60°C). These materials must demonstrate resistance to UV degradation, chemical cleaning agents, and mechanical wear from repeated tactile contact over the expected 10-15 year service life of commercial signage installations.
Production quality control measures require verification of dimensional tolerances within ±0.003 inches (±0.08mm) for all braille dot measurements and ±0.005 inches (±0.13mm) for character heights and spacing dimensions. Manufacturing processes must maintain consistent dot formation quality, with each braille dot exhibiting smooth surfaces free from burrs, voids, or irregularities that could impair tactile readability. Quality assurance protocols typically include statistical sampling of production runs, with inspection requirements covering dot height measurements, spacing verification, and surface finish evaluation. According to industry best practices established by the Sign Research Foundation, manufacturers should maintain production records documenting dimensional verification for each batch of braille signs produced, ensuring traceability and quality consistency across all installations within a facility or organization.
Testing and Verification of Braille Accuracy
Testing and verification procedures for ADA braille signage requirements involve multi-stage quality assurance processes that validate both the accuracy of braille translation and the precision of physical manufacturing execution. Initial verification begins with certified braille translation review, where qualified transcribers examine the Grade 2 Braille conversion against the original text to ensure proper contraction usage, spelling accuracy, and adherence to BANA formatting standards. This translation verification process must account for proper formatting of abbreviations, numbers, and special characters that appear in commercial signage applications such as room numbers, suite designations, and directional information.
Physical verification of manufactured braille signs requires dimensional inspection using precision measuring tools including digital calipers accurate to 0.001 inches (0.025mm) and height gauges capable of measuring braille dot protrusion within required tolerances. Testing protocols should include verification of dot spacing, cell alignment, character height measurements, and overall sign dimensional accuracy compared to approved design specifications. Field testing with qualified braille readers provides the final verification stage, ensuring that the completed signage performs effectively in real-world tactile reading scenarios. According to accessibility consultants specializing in ADA compliance verification, comprehensive testing should occur at three stages: post-translation review, post-manufacturing inspection, and pre-installation field testing to identify and correct any issues before final implementation.
Cost Considerations for Braille Sign Production
Cost considerations for braille signs ADA implementation encompass initial production expenses, installation requirements, and long-term maintenance factors that significantly impact total project budgets for commercial accessibility compliance. Production costs for individual braille signs typically range from $45-$150 per sign depending on size, material selection, complexity of text content, and manufacturing volume, with larger production runs achieving economies of scale that reduce per-unit costs by 20-35%. Premium materials such as cast acrylic or photopolymer resins command higher initial costs but provide superior durability and appearance retention that reduces long-term replacement expenses over the typical 10-15 year service life of commercial signage installations.
Installation costs for ADA braille signage requirements include professional mounting services, compliance verification, and potential facility modifications to accommodate proper placement heights and clearance requirements specified by accessibility standards. Professional installation services typically cost $25-$75 per sign depending on mounting complexity and site accessibility, while compliance verification by certified accessibility consultants adds $150-$300 per facility inspection. Long-term cost considerations include periodic maintenance cleaning, potential replacement due to vandalism or wear, and updates required for facility changes such as room number modifications or tenant relocations. Budget planning should allocate approximately 15-20% of initial signage costs for maintenance and updates over a 10-year period, ensuring continued compliance and optimal tactile performance throughout the signage system's service life.
